Time Derivative Sedimentation Velocity Analysis

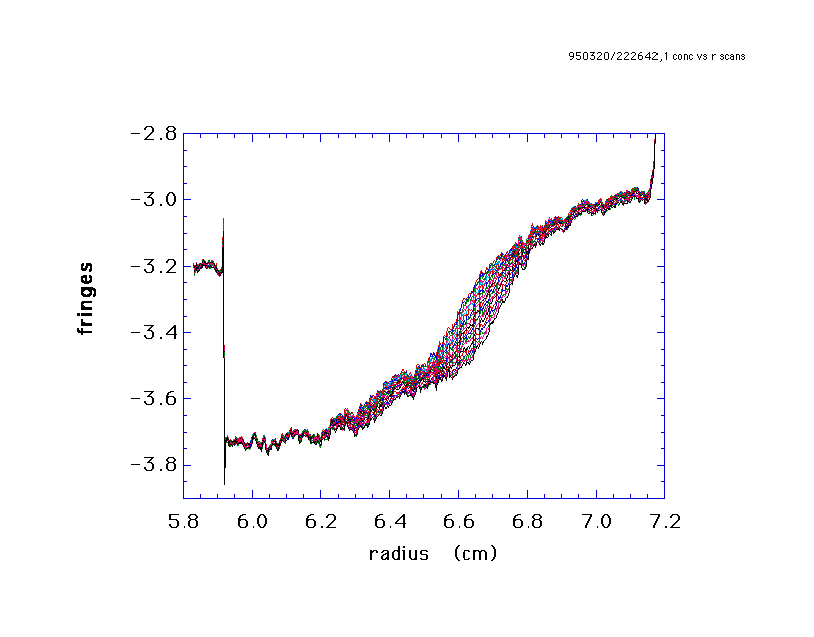

Figure 1. Plot of concentration versus radius

Click on graph to enlarge

back to top

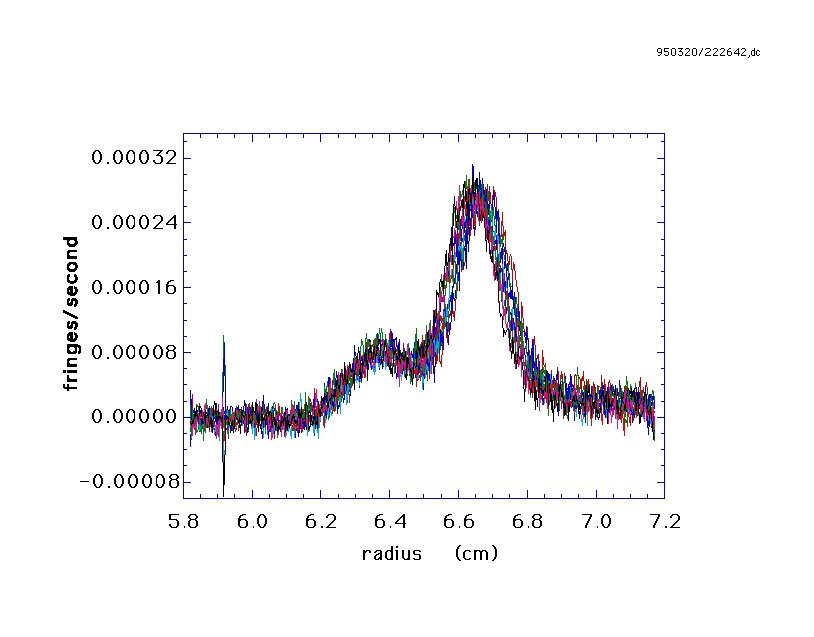

Figure 2. Plot of time derivative vs radius

Click on graph to enlarge

Pairs of curves are subtracted at corresponding radial positions
to produce the baseline corrected time derivative pattern.

back to top

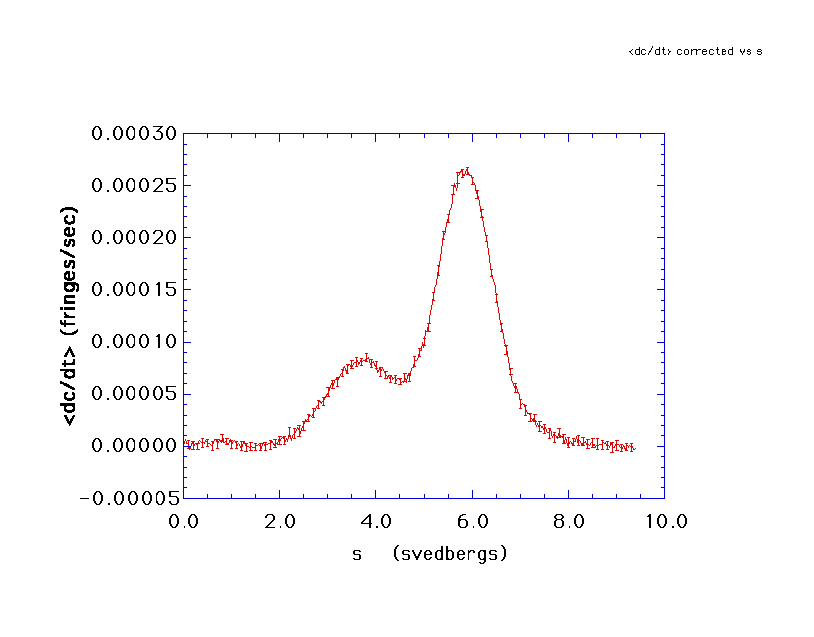

Figure 3. Plot of averaged time derivative versus s*

Click on graph to enlarge

The x-axis for each of the curves from Figure 2 was transformed from radius to s* by the following relationship to compensate for the different times of sedimentation: This transforms the x-axis from the stationary reference frame of the ultracentrifuge cell to the moving reference frame of sedimentation.

where w is the angular velocity of the rotor
t is the sedimentation time
r is the radius, and
rm is the radius of the meniscus.

back to top

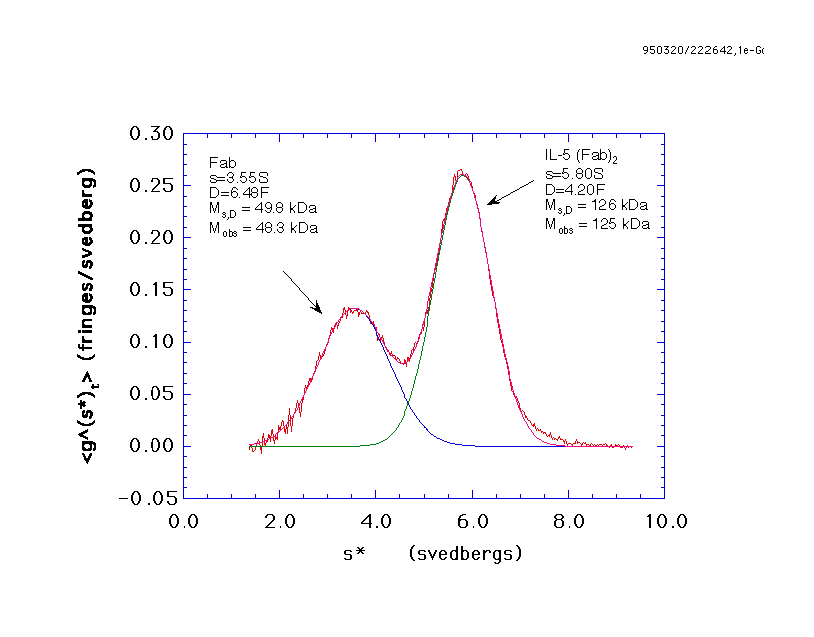

Figure 4. Plot of g(s*) versus s*


Click on graph to enlarge

The y-axis of Figure 3 was transformed from dc/dt to g(s*) so that the area under each peak becomes equal to its (plateau) concentration.

Weight average s & other useful higher and lower order averages

Molar Mass Determination

Diffusion Coefficient Determination
